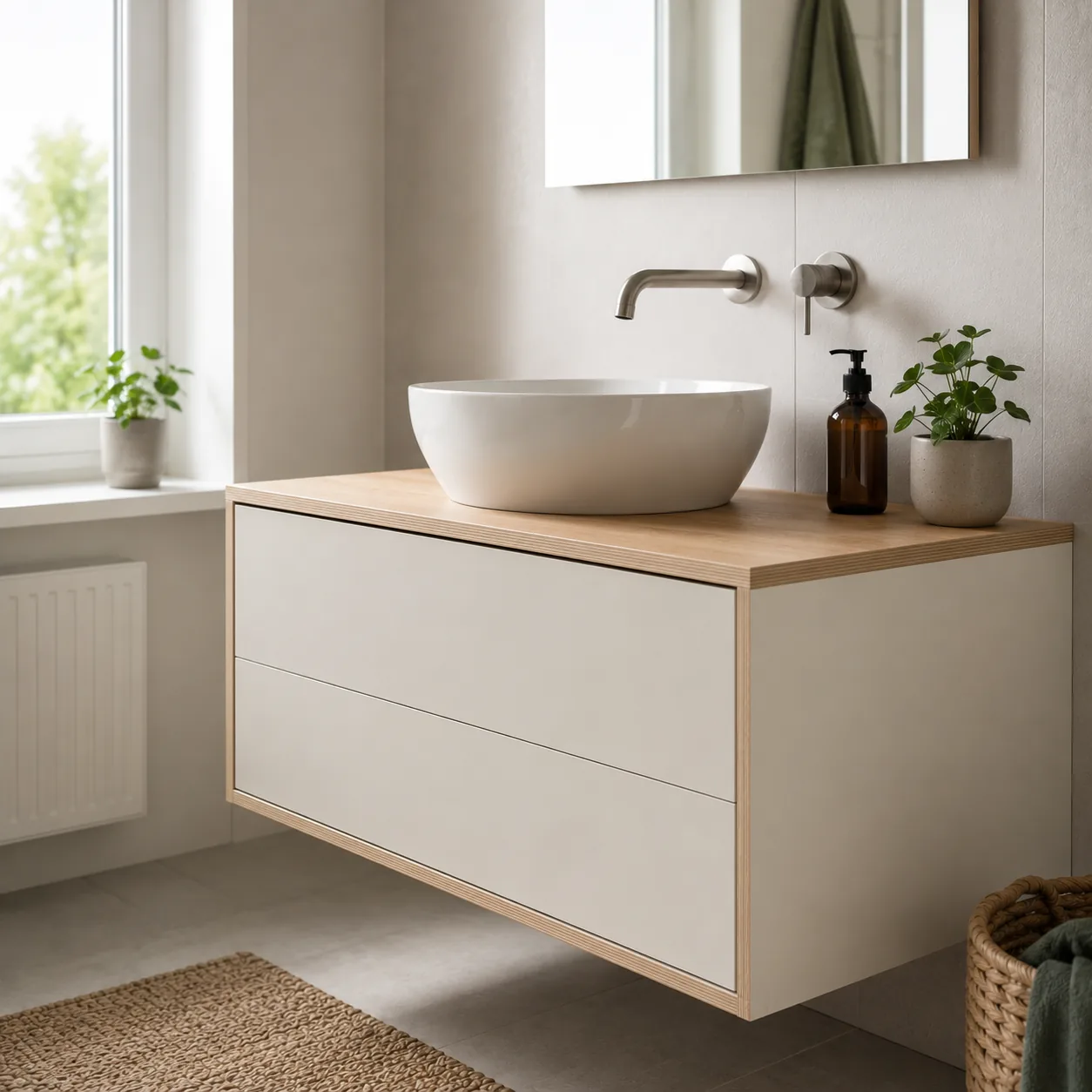

Two drawers under a vessel or drop-in sink. Cut a notch in the top drawer for the P-trap. Hanging it keeps the floor clear and dry.
What makes this design special
A drawer front over the full width, split into two drawers. In moisture-resistant (green) plywood or MDF so it stands up to bathroom damp.
Dimensions
- Width 31 1/2″
- Height 19 11/16″
- Depth 18 1/8″
- 11/16″ moisture-resistant plywood
- Wall-mountable
- Allow for a P-trap cutout
Panel sizes (cut list)
| Part | Size | Qty | Material | Thickness |
|---|---|---|---|---|
| Side | 19 11/16 × 18 1/8″ | 2 | Moisture-resistant plywood | 11/16″ |
| Top / bottom | 30 1/16 × 18 1/8″ | 2 | Moisture-resistant plywood | 11/16″ |
| Back panel | 31 1/2 × 19 11/16″ | 1 | Moisture-resistant plywood | 1/4″ |
| Drawer front | 30 1/4 × 9 3/16″ | 2 | Moisture-resistant plywood | 11/16″ |
| Drawer side | 17 1/2 × 8 9/16″ | 4 | Moisture-resistant plywood | 11/16″ |
| Drawer back | 27 11/16 × 8 9/16″ | 2 | Moisture-resistant plywood | 11/16″ |
| Drawer bottom | 27 11/16 × 16 3/4″ | 2 | Moisture-resistant plywood | 1/4″ |
These are the cut sizes the cabinet designer computes (edge banding and kerf included). For drawers and doors, always check the clearance your own slides and hinges need.
Open this project in the cabinet designer with the button below. You see the cabinet in 2D right away and can change the sizes, material and layout parametrically; the panel sizes and the cutting plan follow along. Rather save it yourself? Download the project file and open it via Open › Load project.
Material and sheets needed
Based on the panel sizes above, this project takes about 1 sheet of 3/4 in (18 mm) moisture-resistant plywood and 1 sheet of 1/4 in (6 mm) moisture-resistant plywood (back panel). Prices vary by country and store, so check your local supplier; the tool works out the exact number of sheets and can show real prices from its material library.
Make it your own
Every size here is a starting point. For more background, read the guide on building a bathroom vanity to size.
